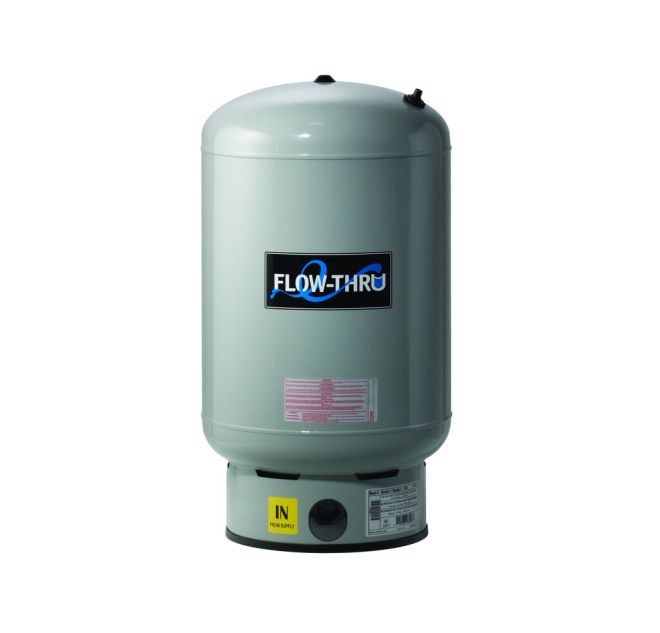

Flow-Thru Steel Tank 170 liter GFU-170LV
£477.00 Excl. VAT
The Flow-Thru Steel Tank, 170 liter / 44.91 gallon vertical model, offers a high-capacity solution for constant pressure systems in both residential and commercial applications. Equipped with GWS’s patented Flow-Thru™ technology, this tank prevents stagnant water and ensures the freshest water possible by continuously flushing the system.
The Flow-Thru Steel Tank, 170 liter / 44.91 gallon vertical model, offers a high-capacity solution for constant pressure systems in both residential and commercial applications. Equipped with GWS’s patented Flow-Thru™ technology, this tank prevents stagnant water and ensures the freshest water possible by continuously flushing the system.
The tank features a steel body with a gray finish, offering excellent durability and corrosion resistance. It comes with a 1.25″ NPT connection (+ BSP adaptor) and operates with a pre-charge pressure of 1.4 bar / 20 psi, making it suitable for demanding water applications that require reliability and superior water quality.
- Commercial water supply systems
- VFD/VSD controlled pressure boosting system
- Heating, ventilation, and air conditioning
- Swimming pools and spas
- Wet cooling towers
- Evaporative cooling
- The system avoids colonization taking place as fresh water is constantly forced into the water chamber
- Available in composite and steel
- Patented CAD-2 diaphragm technology
- No stagnation
- Patented water vane, total recirculation of water
- Leak-free air valve cap sealed with closed cell foam
Temp Max: 90°C / 194°F
Pressure Pre-charge: 1.4 bar / 20 psi
Nominal Volume: 170 Liter / 44.91 Gallon
Connection: 1.25″ FNPT
Color: Gray
Pressure Max: 8.6 bar / 125 psi
Diameter: 53.3 cm / 21 in
