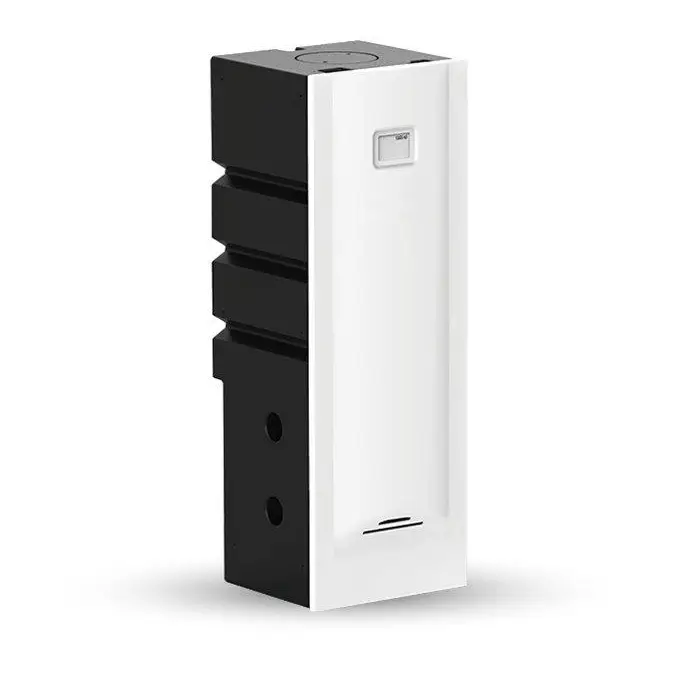

Mainsboost iBoost V200-100-45
£1,640.00 Excl. VAT
10 in stock
The iBOOST V200 is capable of generating pressures of up to 4.5 bar and flow rates of up to 100 litres per minute, typically operating at 60 litres per minute at 3.0 bar pressure.
The V200 offers an advanced variable speed pump control system which enables the unit to supply a constant programmable water pressure as demand on the system fluctuates.
Inadequate flow rates and water pressure are common shortcomings for many properties, often resulting in underperforming showers and water using appliances. iBOOST offers a solution.
These fully integrated systems combine a 200 litre cold water storage tank and a high performance, multistage pump to overcome restricted water flow and insufficient pressure.
The iBOOST V200 is capable of generating pressures of up to 4.5 bar and flow rates of up to 100 litres per minute, typically operating at 60 litres per minute at 3.0 bar pressure.
The V200 offers an advanced variable speed pump control system which enables the unit to supply a constant programmable water pressure as demand on the system fluctuates.
- 3 year warranty
- Compact, space saving design, fits within a 600mm cupboard
- Boosts cold water mains supply to 4.5 bar
- 200 litre water storage capacity
- Quiet operation
- WRAS Approved Product
- High efficiency variable speed pump control
- High flow, low noise equilibrium fill valve
- Control panel and status indicators
- Dry run protection
| Product Code | 46711 |
| General | |
| GTIN | 5050400467113 |
| Warranty | 3 years |
| WRAS | WRAS Approved Product (2301305) |
| Conformity Certification | UKCA | CE |
| Features | |
| Pump control system | Variable speed, pressure transducer |
| Control interface | Programmable controls** |
| Flexible connection hose – outlet | |
| Dry run protection | |
| System check valve | |
| Typical noise | 57 dB(A) |
| Fluid category | CAT 3, CAT 4 |
| Water tank air gap | Type AF |
| Pressure vessel | 8 litres (10 bar) |
| Performance | |
| Maximum head – nominal closed valve | 4.5 bar (45 metres) |
| Maximum flow rate | 100 l/min |
| Maximum inlet pressure – static | 7 bar (700 kPa) |
| Maximum outlet pressure – static | 15 metres |
| Ambient air temperature | Min 4 oC – Max 30 oC |
| Water tank | |
| Nominal water tank size | 220 litres |
| Usable water capacity | 200 litres |
| Float valve type | Equilibrium |
| Water tank fill rate | 20 l/min* |
| Connections | |
| Inlet connection | G ½ male |
| Pump outlet connection | G ¾ male |
| Outlet flexible hose | G ¾ female x 22 mm push-in (220 mm long) |
| Overflow | G 1¼ compression |
| Materials | |
| Water tank | Polyethylene |
| Front panel | Acrylic capped ABS |
| Pump | |
| Pump type | Multistage centrifugal |
| Pump body | Brass / stainless steel |
| Pump impeller | Stainless steel |
| Duty rating | Continuous (S1) @ 5 l/min and above |
| Motor type | Induction motor (current overload sensor) |
| Electrical | |
| Power supply (Vac/Ph/Hz) | 230 V a.c. / 1 / 50 Hz |
| Power consumption – P1 | 996 Watts |
| Current -full load | 6.8 Amps |
| Fuse rating | 10 Amps |
| Power cable length | 3 metres (pre-wired) |
| Physical | |
| Width | 536 mm |
| Depth | 529 mm |
| Height | 1504 mm |
| Weight – including fittings | 56 Kg |
| Weight – filled | 256 Kg |
| * | Assumes 1 bar inlet pressure |
| ** | Variable speed pre-set to 3.0 bar, adjustable in 0.1 bar increments |
