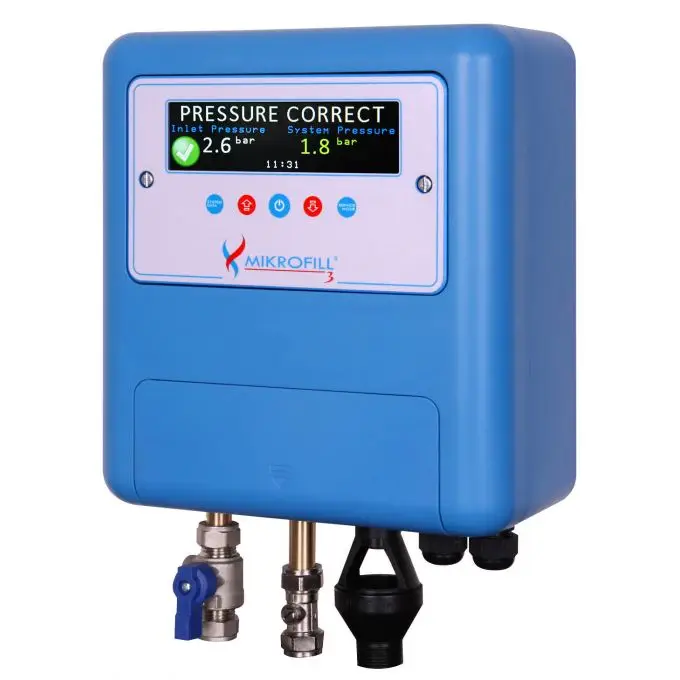

MIKROFILL 3 EFD
£1,249.00 Excl. VAT
10 in stock
Manufacturer Code
PressBoost Product Code
The MIKROFILL 3 is the most advanced ‘direct-type’ ‘pumpless’ digital pressurisation unit available, suitable for sealed system LPHW / CHW applications of any size.
Description
Features
Technical Specification
The MIKROFILL 3 is the most advanced ‘direct-type’ ‘pumpless’ digital pressurisation unit available, suitable for sealed system LPHW / CHW applications of any size.
Unlike ‘pump type’ pressurisation units the pumpless MIKROFILL 3 is designed to be connected directly to a buildings incoming mains/boosted water supply and fill a heating or chilled water system without the use of a pump.
The MIKROFILL 3 is the most energy efficient unit of its kind consuming as little as 10 watts/hr on standby and 30 watts/hr fully operational.
- Integral fluid risk category 4 backflow prevention – No RPZ valve required
- Fills any LPHW/CHW system from empty – Connects directly to the mains/boosted water supply
- Wall mounted unit only 270 mm high x 250 mm wide – Compact enough to fit in the smallest of plantrooms
- Consumes 10 watts on standby and 30 watts fully operational per hour – 97% more energy efficient than some pump type units
- Fill volume indicator – Aids water treatment calculation
- Large colour screen display – Clear and concise instruction
- Pre – commissioned packages available – No onsite commissioning required when sold as a package
| Product Code | 47494 |
| General | |
| Warranty | 2 years |
| WRAS | WRAS Approved Product (1806078) |
| Conformity certification | UKCA / CE |
| Performance | |
| Cold fill pressure – max | 4.7 bar |
| Inlet pressure – max | 5 bar |
| Flow rate – nominal | 14 l/min (at 2 bar) |
| Electrical | |
| Power supply (Vac/Ph/Hz) | 230 V a.c. / 1 / 50 Hz |
| Current – full load | 1.0 Amps |
| Current – starting | 1.0 Amps |
| Fuse rating | 3 Amps |
| BMS Relays – max load | 5 Amps |
| Connections | |
| Cold water inlet | 15 mm Compression |
| System outlet | 15 mm Compression |
| Drain (via tundish) | ¾” BSP |
| Dimensions | |
| Height | 270 mm |
| Width | 250 mm |
| Depth | 112 mm |
| Weight – dry | 5.0 kg |
