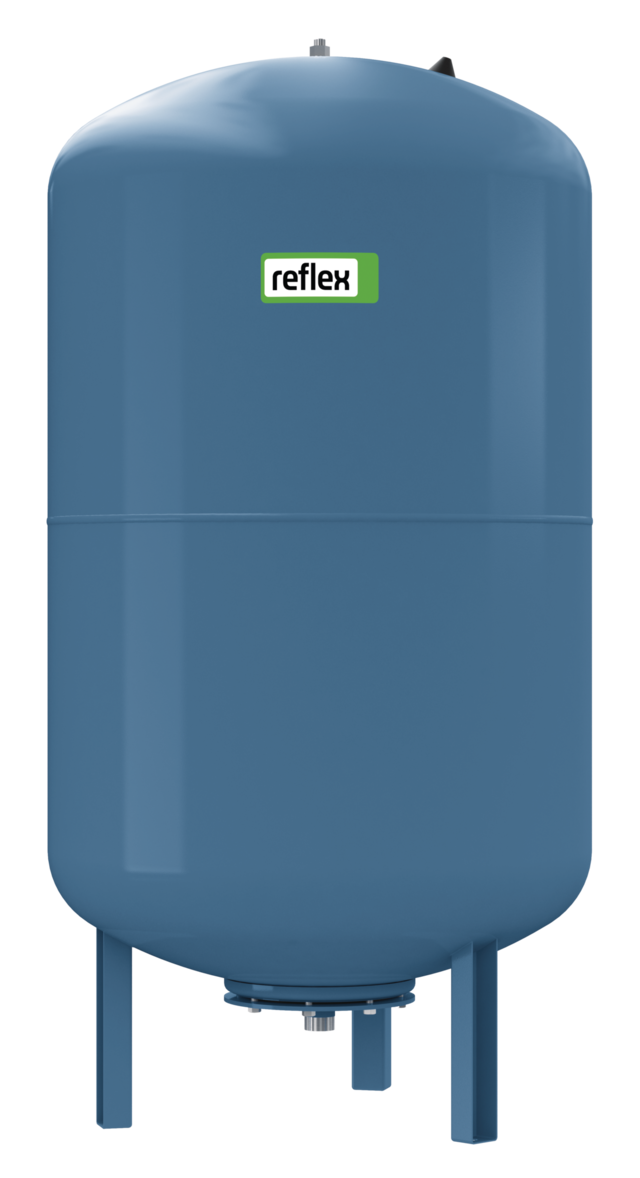

Refix DE 100
£298.00 Excl. VAT
Diaphragm expansion vessel without through flow, blue, 10/4 bar.
Non-flowed through diaphragm expansion tank for water supply installations that are not subject to DIN 1988, e.g. fire extinguishing and service water systems, underfloor heating or heat source installations. Vessels are designed and manufactured according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
bladder according to DIN EN 13831 / replaceable from 50 litres
for antifreeze additive of at least 25 – 50 %
parts in contact with water are corrosion-protected
durable epoxy resin coating
33 litres with brackets, from 50 litres with adjustable feets
the following types incl. pressure gauge:
→ 10/16 bar: from Ø 1,000 mm
→ 25 bar: from Ø 450 mm
pressure gauge and supply pressure valve protected by clip
Note:
No licence requirement according to SWKI HE301-01 and SVTI for (PSV * VN ≤ 3,000 bar * litre).
| Type | DE 100 |
|---|---|
| Colour | blue |
| Diaphragm material | butyl |
| Nominal volume | 100 l |
| Max. useful volume | 75 l |
| Max. permissible system temperature | 70 °C |
| Min. perm. operating temperature | -10 °C |
| Max. perm. operating temperature | 70 °C |
| Max. perm. operating pressure | 10 bar |
| Factory provided gas supply pressure | 4 bar |
| Connection | G 1″ |
| Diameter | 480 mm |
| Height | 860 mm |
| High water connection | 143 mm |
| Tilt dimension approx. | 874 mm |
| Weight | 14.70 kg |
| EAN code | 4036705001222 |
